RVV系列

技術數據

深圳市標頂科技有限公司企業標準:Q/BD 002-2011或國家標準:GB/T 5023.5-2008

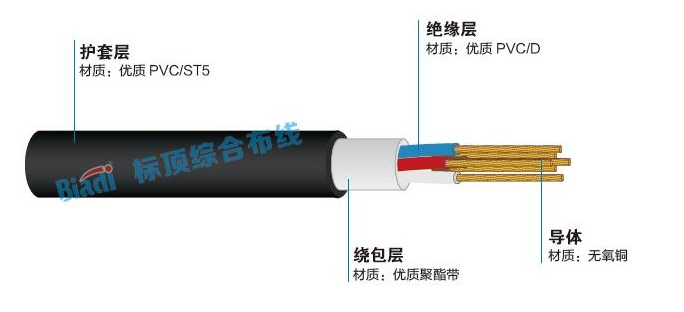

電纜結構

應用

該系列產品適用于電器、儀器、儀表和電子設備及自動化裝置電源線、控制線及信號傳輸線,具體可用于防盜報警系統、樓宇對講系統等用線。




產品標準產品型號產品規格導體條數導體直徑芯線平均厚度護套平均厚度20℃時導體最大電阻70℃時絕緣電阻最小值
NmmmmmmΩ/kmMΩ.km
GB/T5023.5-2008(300/300V)60227 IEC 52(RVV)2×0.5160.200 0.55 0.66 39.00 0.012
GB/T5023.5-2008(300/300V)60227 IEC 52(RVV)2×0.5(扁型)160.200 0.55 0.66 39.00 0.012
GB/T5023.5-2008(300/300V)60227 IEC 52(RVV)2×0.75240.200 0.66 0.88 26.00 0.011
GB/T5023.5-2008(300/300V)60227 IEC 52(RVV)2×0.75(扁型)240.200 0.66 0.88 26.00 0.011
GB/T5023.5-2008(300/300V)60227 IEC 52(RVV)2×1.0320.200 0.66 0.88 19.50 0.010
GB/T5023.5-2008(300/300V)60227 IEC 52(RVV)2×1.0(扁型)320.200 0.66 0.88 19.50 0.010
GB/T5023.5-2008(300/300V)60227 IEC 52(RVV)2×1.5480.200 0.77 0.88 13.30 0.010
Q/BD002-2011(300/500V)RVV2×1.5(扁型)480.200 0.77 0.88 13.30 0.010
GB/T5023.5-2008(300/300V)60227 IEC 53(RVV)2×2.5780.200 0.88 1.10 7.98 0.009
Q/BD002-2011(300/500V)RVV2×2.5(扁型)780.200 0.88 1.10 7.98 0.009
Q/BD002-2011(300/500V)RVV2×4.0800.250 0.88 1.10 4.95 0.007
Q/BD002-2011(300/500V)RVV2×4.0(扁型)800.250 0.88 1.10 4.95 0.007
Q/BD002-2011(300/500V)RVV2×6.01200.250 0.88 1.33 3.30 0.006
GB/T5023.5-2008(300/300V)60227 IEC 52(RVV)3×0.5160.200 0.55 0.66 39.00 0.012
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)3×0.75240.200 0.66 0.88 26.00 0.011
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)3×1.0320.200 0.66 0.88 19.50 0.010
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)3×1.5480.200 0.77 0.99 13.30 0.010
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)3×2.5780.200 0.88 1.21 7.98 0.009
Q/BD002-2011(300/500V)RVV3×4.0800.250 0.88 1.21 4.95 0.007
Q/BD002-2011(300/500V)RVV3×6.01200.250 0.88 1.50 3.30 0.006
Q/BD002-2011(300/500V)RVV4×0.5160.200 0.55 0.66 39.00 0.012
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)4×0.75240.200 0.66 0.88 26.00 0.011
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)4×1.0320.200 0.66 0.99 19.50 0.010
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)4×1.5480.200 0.77 1.10 13.30 0.010
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)4×2.5780.200 0.88 1.21 7.98 0.009
Q/BD002-2011(300/500V)RVV4×4.0800.250 0.88 1.35 4.95 0.007
Q/BD002-2011(300/500V)RVV4×6.01200.250 0.88 1.61 3.30 0.006
Q/BD002-2011(300/500V)RVV5×0.5160.200 0.55 0.66 39.00 0.012
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)5×0.75240.200 0.66 0.99 26.00 0.011
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)5×1.0320.200 0.66 0.99 19.50 0.010
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)5×1.5480.200 0.77 1.21 13.30 0.010
GB/T5023.5-2008(300/500V)60227 IEC 53(RVV)5×2.5780.200 0.88 1.32 7.98 0.009
Q/BD002-2011(300/500V)RVV5×4.0800.250 0.88 1.43 4.95 0.007
Q/BD002-2011(300/500V)RVV5×6.01200.250 0.88 1.61 3.30 0.006
Q/BD002-2011(300/500V)RVV6×0.5160.200 0.55 0.65 39.00 0.012
Q/BD002-2011(300/500V)RVV6×0.75240.200 0.66 1.03 26.00 0.011
Q/BD002-2011(300/500V)RVV6×1.0320.200 0.66 1.17 19.50 0.010
Q/BD002-2011(300/500V)RVV6×1.5480.200 0.77 1.29 13.30 0.010
Q/BD002-2011(300/500V)RVV6×2.5780.200 0.88 1.45 7.98 0.009
Q/BD002-2011(300/500V)RVV7×0.5160.200 0.55 0.66 39.00 0.012
Q/BD002-2011(300/500V)RVV7×0.75240.200 0.66 1.03 26.00 0.011
Q/BD002-2011(300/500V)RVV7×1.0320.200 0.66 1.12 19.50 0.010
Q/BD002-2011(300/500V)RVV7×1.5480.200 0.77 1.34 13.30 0.010
Q/BD002-2011(300/500V)RVV8×0.5160.200 0.55 0.91 39.00 0.012
Q/BD002-2011(300/500V)RVV8×0.75240.200 0.66 1.05 26.00 0.011
Q/BD002-2011(300/500V)RVV
